Glass Type
Float Glass
Float glass is a type of flat glass made by floating molten glass on a bed of molten tin. This process results in a smooth, uniform surface and consistent thickness. It is widely used in windows, doors, mirrors, and other architectural applications due to its clarity, strength, and versatility. The float glass manufacturing process revolutionized the glass industry by enabling large-scale production of high-quality flat glass at lower costs.

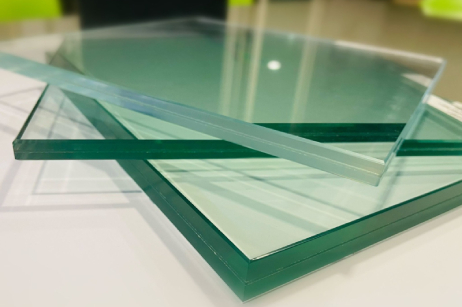

Laminated Glass
Laminated glass is made by bonding two or more layers of glass together with a layer of polyvinyl butyral (PVB) interlayer. The interlayer provides enhanced safety and security, as it holds the glass fragments together when shattered. Laminated glass is commonly used in applications such as windshields, skylights, and glass facades.
Low-E Glass
Low-emissivity (Low-E) glass has a thin, transparent coating applied to its surface. This coating helps to reflect heat back into the room, improving energy efficiency and reducing heat transfer through the glass. Low-E glass is commonly used in energy-efficient windows and building facades to enhance thermal insulation.
Frosted Glass
Frosted glass is a type of glass that has been treated to create a frosted or matte appearance. It can be achieved through various techniques such as acid etching, sandblasting, or applying a frosted film. Frosted glass allows light transmission while offering privacy, making it suitable for applications like windows, shower doors, and partitions.
Double Glazing Glass
Double glazing glass consists of two glass panes separated by a spacer and sealed together. The space between the panes creates an insulating cavity filled with air or gas. This design improves thermal insulation, reduces heat transfer, and helps maintain a comfortable indoor temperature. Double glazing glass also provides sound insulation, prevents condensation, enhances energy efficiency, and improves safety. It is commonly used in buildings to save energy, reduce noise, and create a more comfortable living or
working environment.
Tempered Glass
Tempered glass is a type of safety glass that is processed to increase its strength and shatter resistance. It undergoes a heating process followed by rapid cooling, which creates compression and tension forces within the glass, making it several times stronger than regular glass.
Heat Strengthened Glass
Heat-strengthened glass is produced by heating the glass to a temperature just below its softening point and then slowly cooling it. This process creates compressive and tensile stresses within the glass, resulting in increased strength. Heat-strengthened glass is stronger than standard annealed glass but not as strong as tempered glass. It provides improved resistance to thermal stress.
Tempered Heat Soaked
Tempered heat soak glass, undergoes an additional heat soak test after the tempering process. This test is conducted to reduce the risk of spontaneous breakage caused by nickel sulfide inclusions. The glass panels are placed in a high-temperature chamber for several hours to accelerate the expansion and potential breakage of any NiS inclusions. This test helps to ensure the safety and reliability of tempered glass installations by eliminating any panels with NiS inclusions that could potentially cause breakage over time.
Acoustic Glass
Acoustic glass, also known as soundproof glass or sound-insulating glass, is a specialized type of glass designed to reduce noise transmission between different areas or spaces. Acoustic glass consists of multiple layers of glass, typically laminated together with an interlayer of polyvinyl butyral (PVB) or ethylene-vinyl acetate (EVA) resin. The interlayer acts as a damping material, absorbing sound vibrations and reducing their transmission through the glass. The effectiveness of acoustic glass in reducing noise depends on several factors, including the thickness and number of glass layers, the interlayer material, and the air gap between glass panes. These factors determine the glass’s sound transmission class (STC) rating, which measures its ability to block sound.
